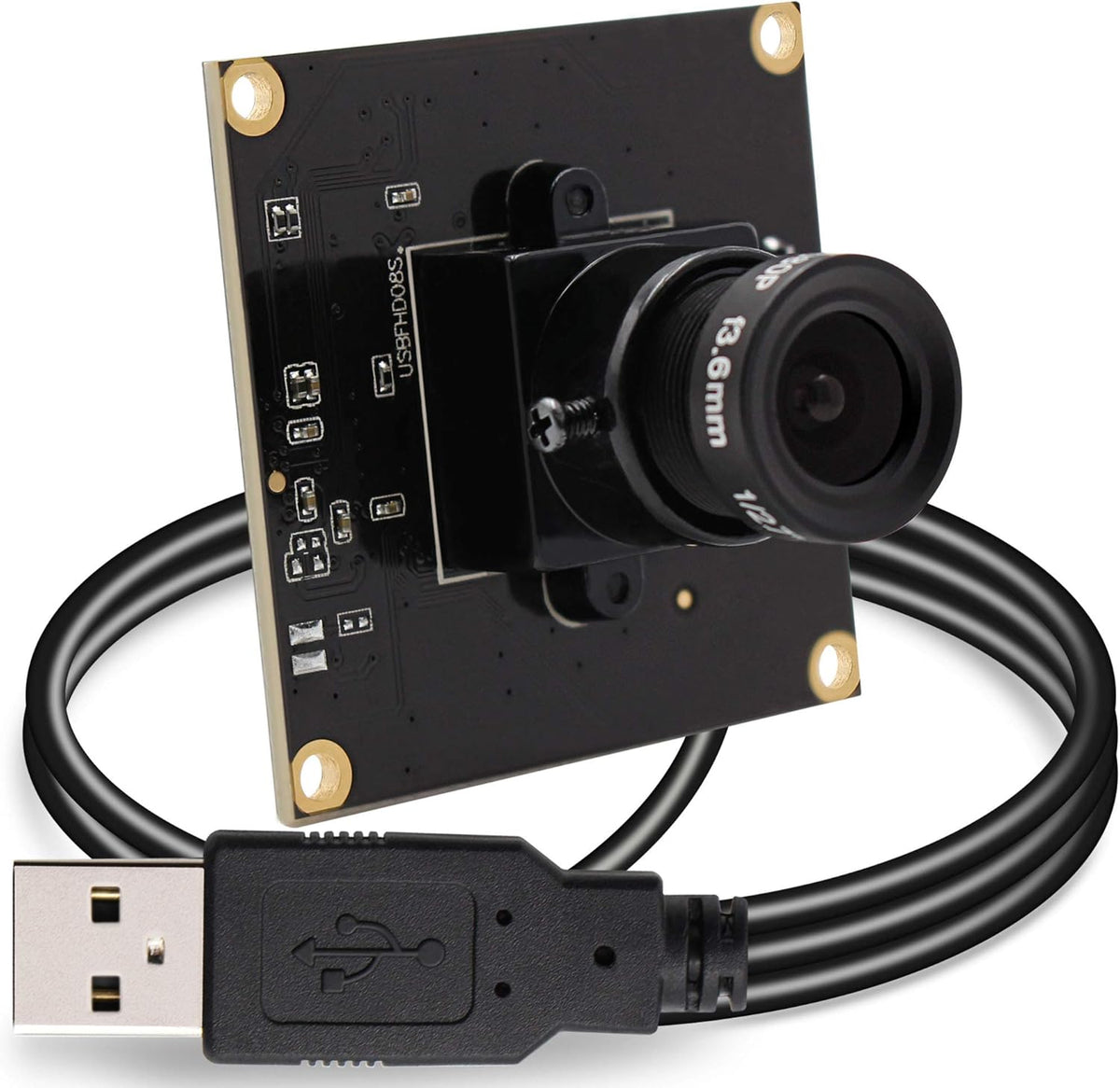

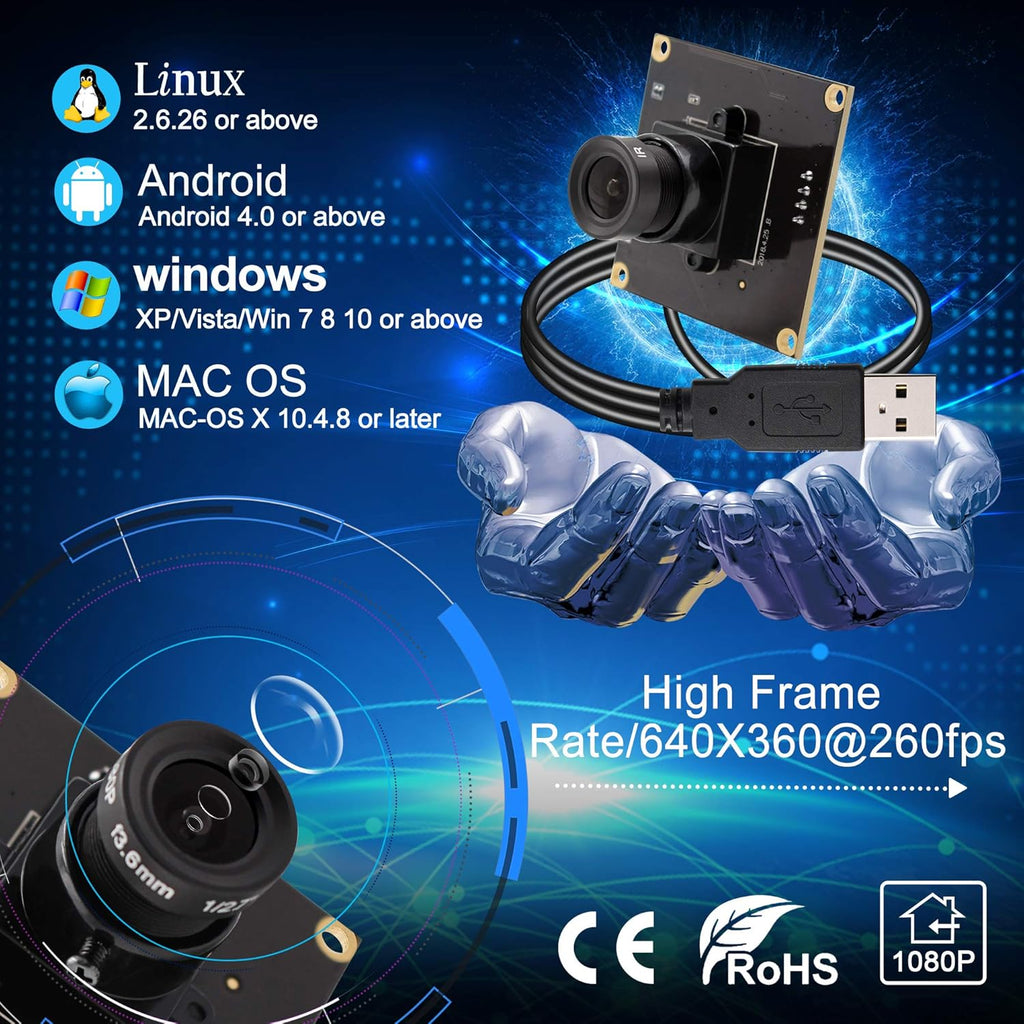

USB 2MP Web Camera Module 640x360 260fps 1080P B126
USB 2MP Web Camera Module 640x360 260fps 1080P B126
【High Frame Rate 1080P Webcamera Module】: High speed 2 MP webcamera with high frame 640*360MJPE@260fps.;1280*720 MJPEG@120fps;1920*1080MJPEG@60fps. Super small and thin profile for embedded applications
【Plug & Play】: OTG supported.Only plug and camera into computer USB port and running the software can make video display and recording work. No drive installation is required.Webcam Test Software: Camerfi for Android ,Montinon eye OS for Raspberry Pi ,Amcap for Window
【High Compatiability USB with Camera】: Support OS 'WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later.Our usb camera can work along with the webcam software installed by default in the PCwork along with the webcam software installed by default in the PC
【Wide Application Industrial Camera Module】: Ideal for many applications like ATM Machine, Robot, PC, Kiosk,Security Systems, Portable Video System, Video Phones, Industrial Machine Monitoring and Toys etc.
USB Camera are imaging cameras that use USB2.0 technology to transfer image data.
USB cameras are ideal for many imaging applications.
USB camera module widely applications:Car and ship control,electronic equipment,oil field equipment,industrial equipment,remore site monitoring,envirnmrntal monitoring,etc.

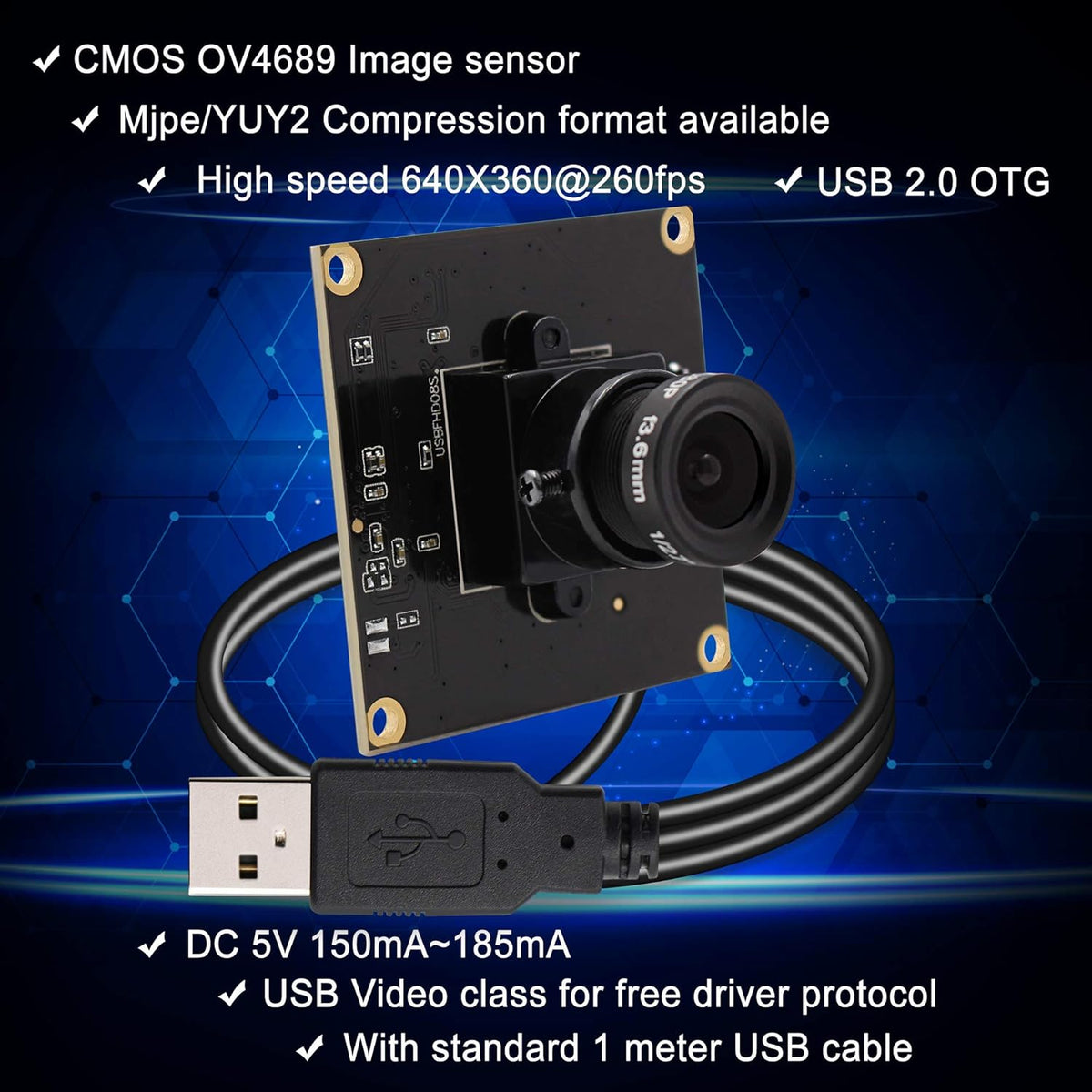

Specification:
Image Sensor:1/3’’ CMOS OV4689
Comperssion format:Mjpeg/YUY2
Resolution/Frame:1920x1080 MJPEG @60fps;1280*720 MJPEG@120fps;640*360MJPE@260fpc
Mini Illumination:0.1Lux
Night Vision:Not support
Shutter:Electronic rolling shutter
Free driver protocol:USB Video class (UVC)
Support OTG protocol:USB2.0 OTG
Adjustable parameters: Brightness,Contrast,Saturation,Hue,Sharpness,Gamma,Gain,White balance,Backlight contrast,Exposure.
Power supply:DV 5V 150mA~185mA
Working temperature:About -25~85 degree

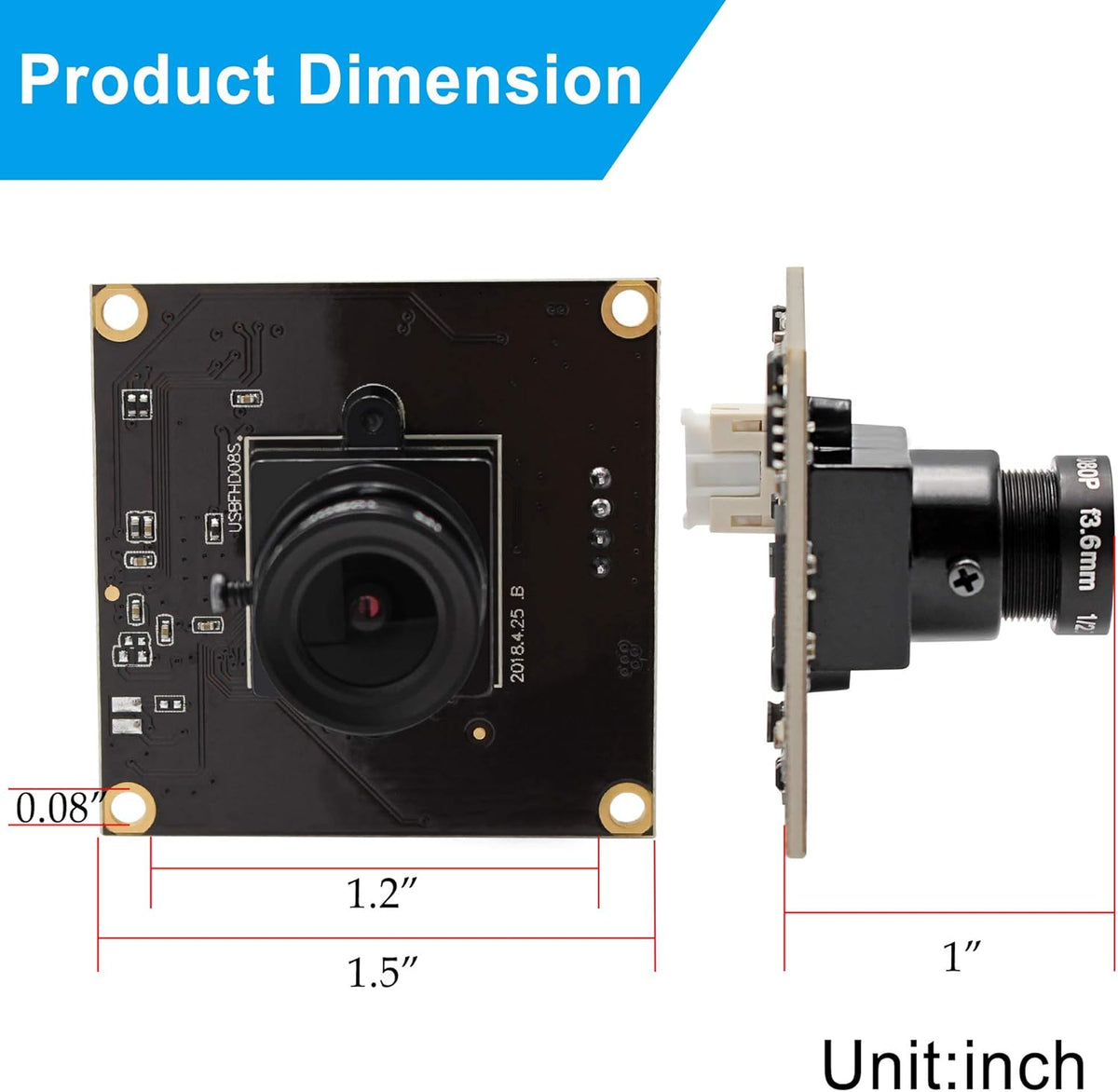

Dimension:38X38mm
Cable:Standard with 1meter cable
Certification:CE FCC
Tips:
USB camera module applicate system: WinXP/Vista/Win7/Win8/Win9/Win10/ Linux with UVC (Above linux-2.6.26/Mac-OS X 10.4.8 or later /Android 4.0 or above with UVC
| 2 Megapixel usb camera module | 1.3 MP synchronized dual lens usb camera | 2 Megapixel varifocal lens webcam | 8 Megapixel varifocal lens usb camera | 2 Megapixel varifocal lens usb with camera | |
|---|---|---|---|---|---|
| Image Sensor | IMX322 | CMOS OV9715 | CMOS OV2710 | IMX179 | IMX322 |
| Resolution | Max.1920X1080 | Max.2560HX960 | Max.1920X1080 | Max.3264X2448 | Max.1920X1080 |
| Frame | 30fps | 60fps | 100fps | 30fps | 30fps |
| Lens | 3.7mm | V90 Lens | 5-50mm | 5-50mm | 2.8-12mm |
| Plug & Play | ✓ | ✓ | ✓ | ✓ | ✓ |
| Support OTG | ✓ | ✓ | ✓ | ✓ | ✓ |
| System | Android/Linux/Window/Mac | Android/Linux/Window/Mac | Android/Linux/Window/Mac | Android/Linux/Window/Mac | Android/Linux/Window/Mac |
| Compression Fotmat | H.264/Mjpeg/YUY2 | Mjpeg/YUY2 | Mjpeg/YUY2 | Mjpeg/YUY2 | Mjpeg/YUY2 |
| Mini Illumination | 0.01lux | 0. 1lux | 0.01lux | 0.5lux | 0.01lux |
